The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.8 inch 320X240 Graphic LCD Module | STN+Yellow-Green | Yellow-Green Backlight | MCU |RA8835/RA8806 |Arduino HTM320240F-01Y-A3P | Graphic LCD Module | 320x240 |
|
92.0x71.3x9.0 | 78.78x59.68 | 76.78x57.58 | 0.24x0.22 | 6H | FFC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | RA8835 | ||

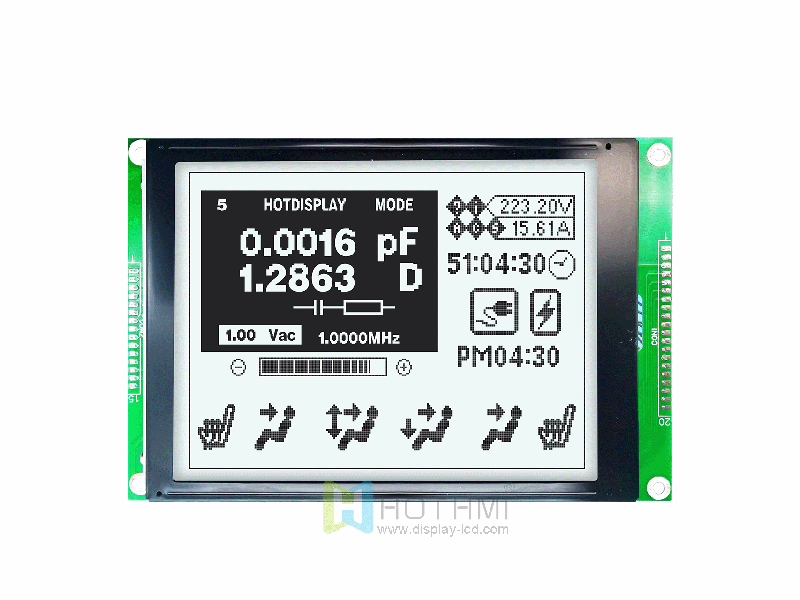

| 6.0 inch 320x240 Graphic LCD Dot Matrix Module | FSTN Gray | MCU | RA8835 | Arduino | Fully Transparent Polaroid HTM320240A-35S-A5P | Graphic LCD Module | 320X240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | RA8835 | ||

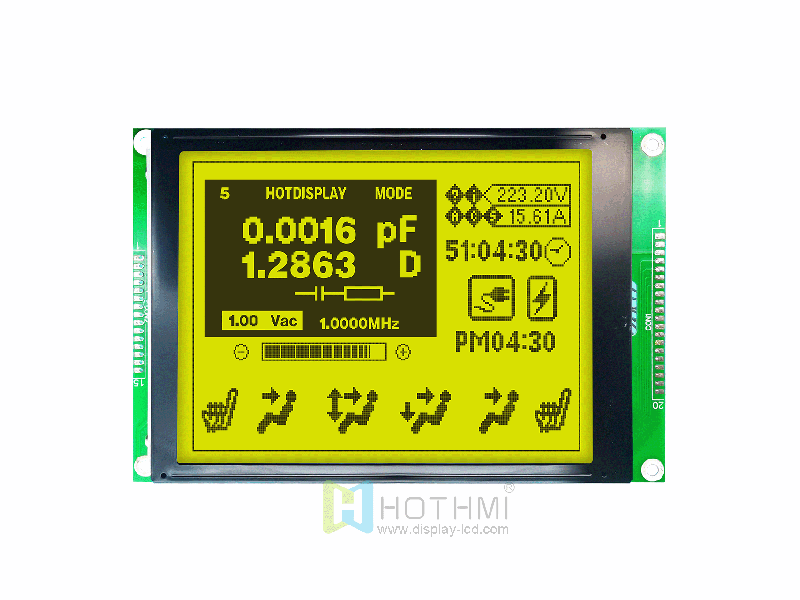

| 6.0 inch 320x240 Graphic LCD Dot Matrix Module | STN Gray + Yellow-Green Backlight | MCU | RA8835 | Arduino HTM320240A-11Y-A5P | Graphic LCD Module | 320x240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | RA8835 | ||
| 6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module | STN+ | MCU | RA8835 | 5v | Arduino HTM320240A-11W-A5P | Graphic LCD Module | 320x240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | RA8835 | ||
| 6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module/DFSTN-/MCU/RA8835/White on Black/Arduino HTM320240A-41W-A5P | Graphic LCD Module | 320x240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | RA8835 | ||
| 6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module | DFSTN- | MCU | RA8835 | White on Black | Arduino HTM320240A-41W-A5P | Graphic LCD Module | 320x240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | RA8835 | ||
| 6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module | FSTN+ | MCU | RA8835 | Arduino HTM320240A-31W-A5P | Graphic LCD Module | 320x240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | RA8835 | ||

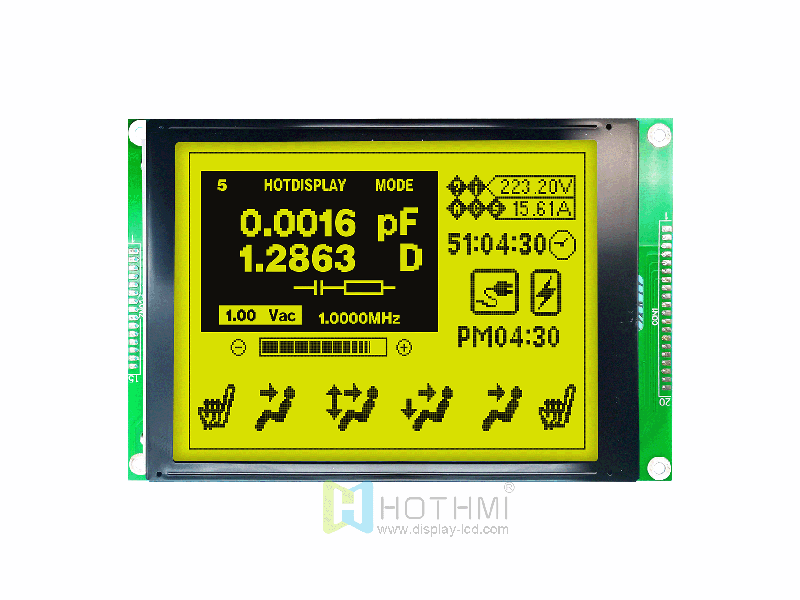

| 6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module | STN+Yellow-green Backlight | MCU | RA8835 | Arduino HTM320240A-01Y-A5P | Graphic LCD Module | 320x240 |
|
160X109X13.49 | 122.0x92.0 | 115.17x86.37 | 0.36x0.36 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | RA8835 | ||
| 3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module/MCU/ST7529/Arduino/Transmissive Polaroid HTM240160P-35S-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | |||
| 3.6 inch 240x160 Graphic LCD Dot Matrix Module | STN+Yellow-green Backlight | MCU | ST7529 | Arduino HTM240160P-11Y-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 |
