您的當前位置:首頁  >  產品中心  >  TFT彩色顯示屏  >  圓屏 | 方屏 | 長條   >  10.3寸1280x480 IPS LVDS車載級TFT模組/TFT-H103A3VNGD1E0
  • 型號: 10.3寸1280x480 IPS LVDS車載級TFT模組/TFT-H103A3VNGD1E0

    類型:車載TFT

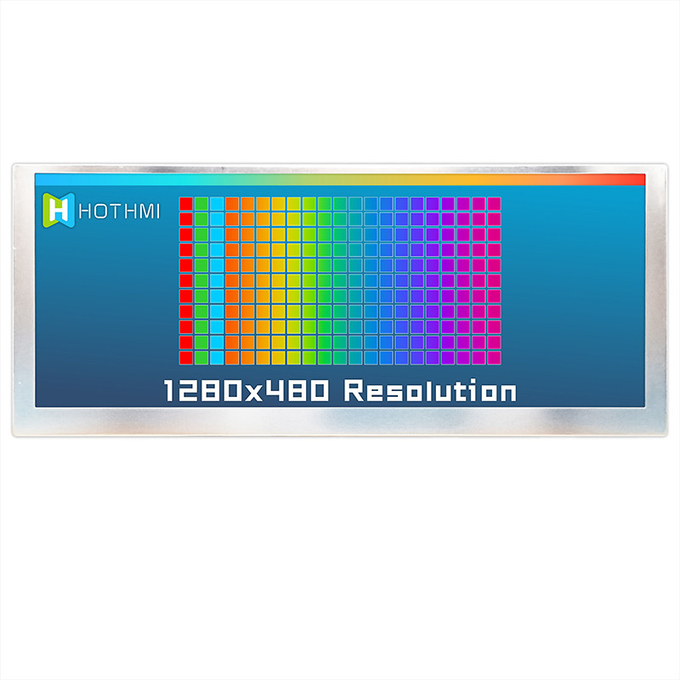

    顯示像素:1280x480

    外形尺寸 :269.2x109.85x8.65

    VA尺寸:10.3

    AA尺寸 :10.3

    有效尺寸mm:243.84x91.44

    應用:汽車儀表

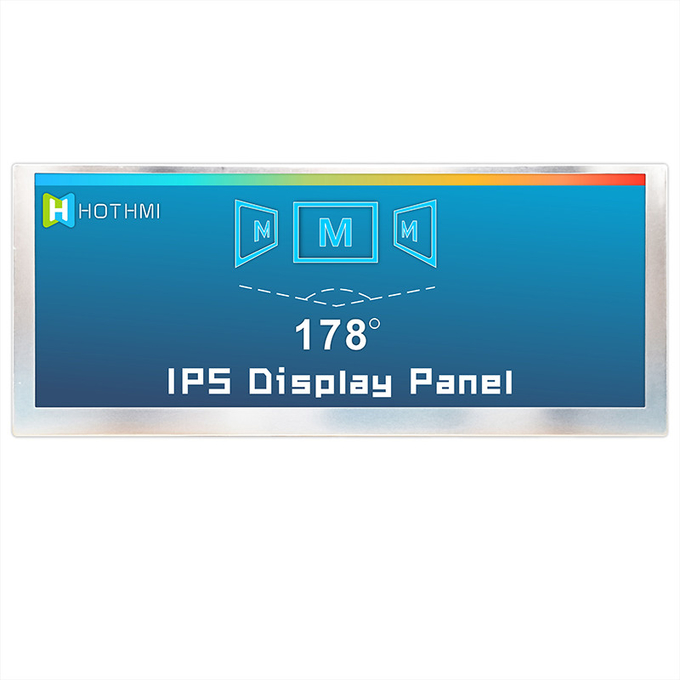

    視角:Full View

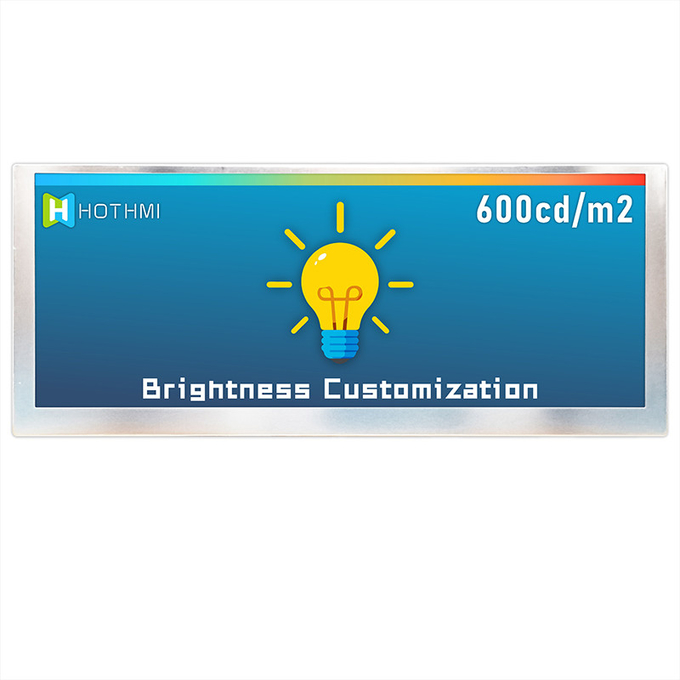

    背光/亮度:600cd/m2

    引腳:60PIN/FH52-60S-0.5SH

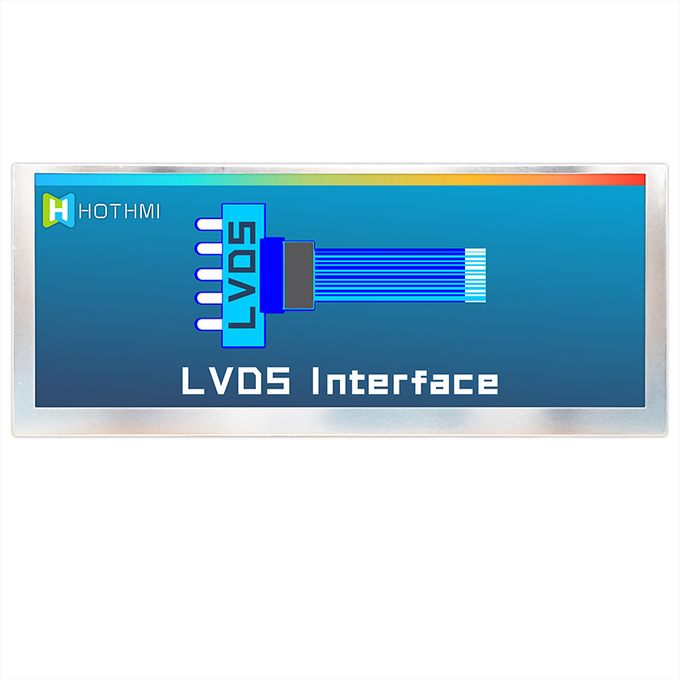

    接口方式:LVDS

    特殊說明:車規級

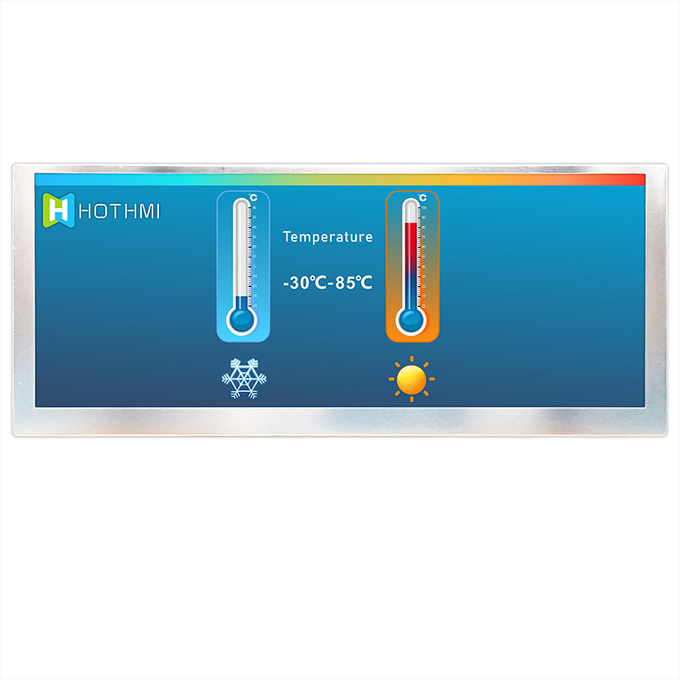

    工作溫度:-30~85℃

    供電電壓:3.3V

    PDF下載
產品敘述

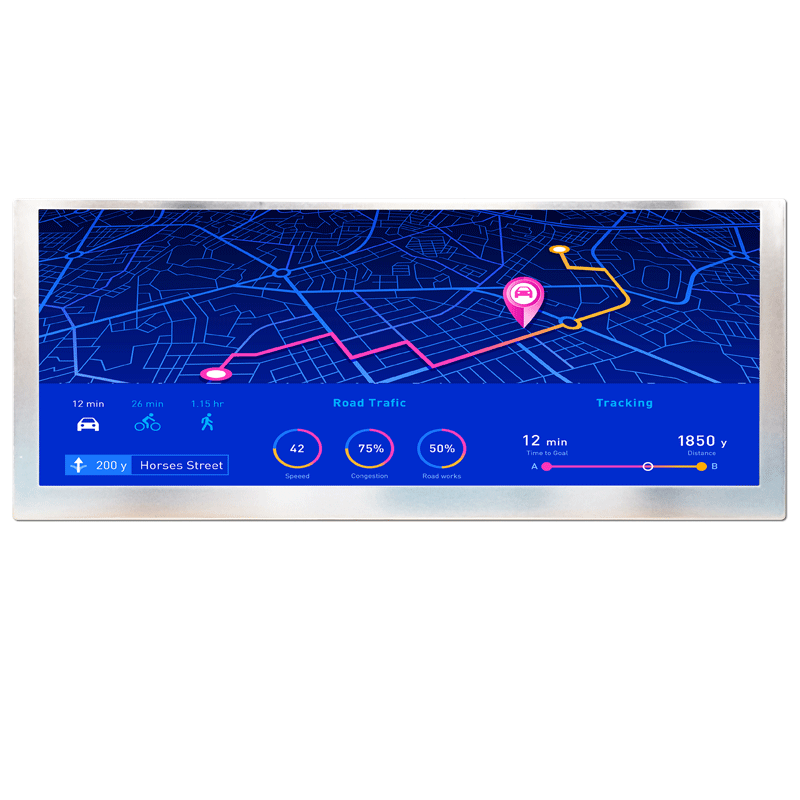

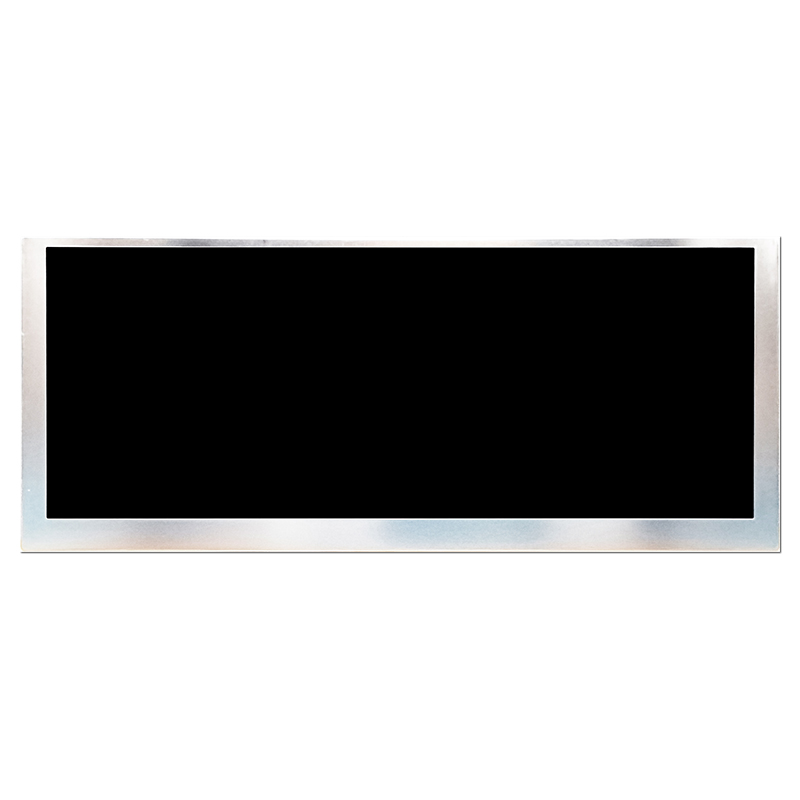

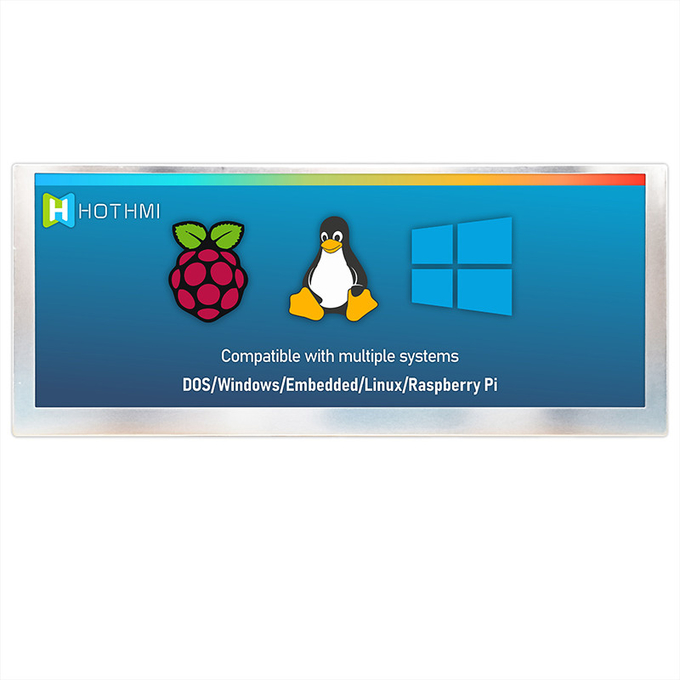

10.3寸1280x480 IPS LVDS車載級TFT模組/TFT-H103A3VNGD1E0

TFT-H103A3VNGD1E0 | 10.3" IPS LCD | 1280x480 px 屏幕 | 寬溫

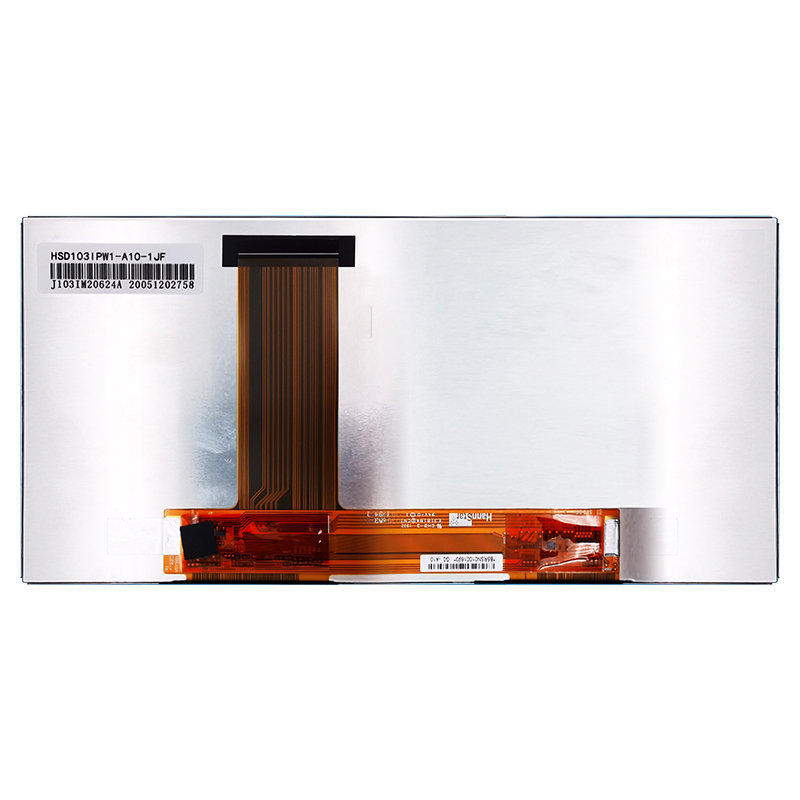

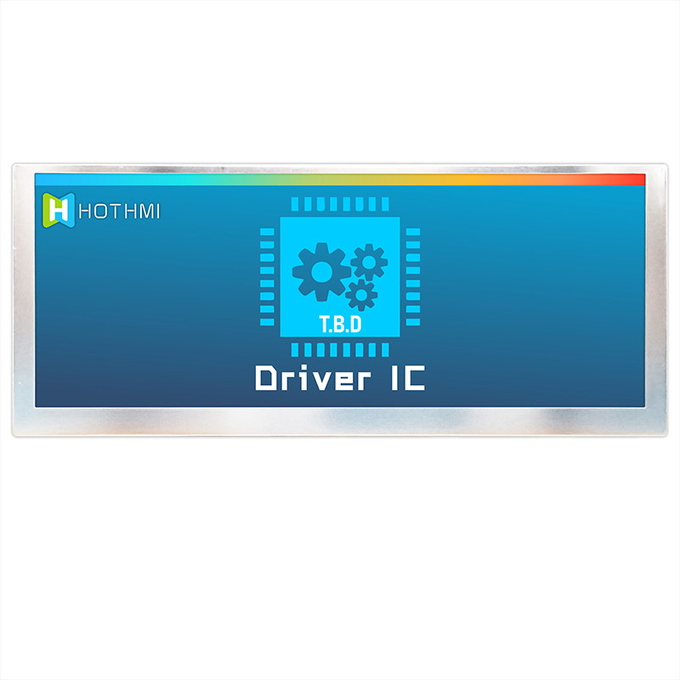

這款 10.3" 顯示屏是 1280x480 分辨率的 IPS TFT。LCD 屏幕采用 IPS 技術,可提供增強的色彩再現、更好的圖像一致性、高亮度背光的陽光下可讀性,并在任何角度都具有出色的光學特性。這種 24 位真彩色 液晶顯示器還包括更好的 FPC 設計,電纜上有 EMI 屏蔽。它還具有內置 T.B.D 驅動器,并提供與 TN 顯示器相同的機械足跡和引出線。此 TFT 符合 RoHS 標準

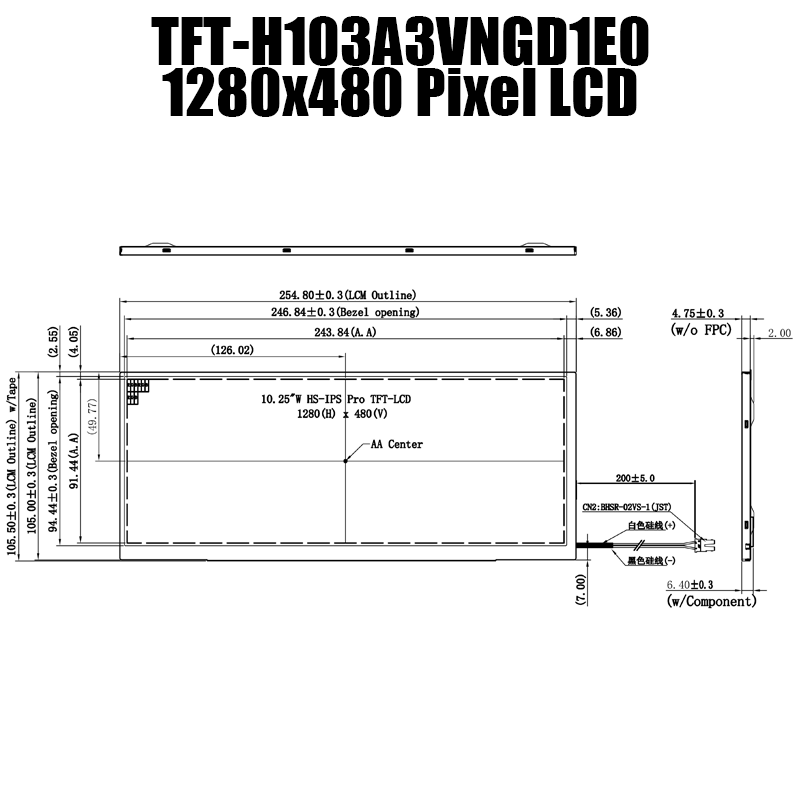

General information



ItemSpecificationUnit
Outline Dimension254.8 (H) x 105.50 (V) x 6.40 (D) (Typ)mm
Display area243.84(H) x 91.44(V)mm
Number of Pixel1280(H) x 480(V)pixels
Pixel pitch0. 1905(H) x 0. 1905(V)mm
Pixel arrangementRGB Vertical Stripe
Display modeNormally Black
NTSC70(Typ.)%
Surface treatmentAntiglare, Hard-Coating (3H)
Weight450g
Back-lightSingle LED (Side-Light type)

Power

Consumption

Logic System (White Pattern)Logic 2.0W(typ) TBD(max)W
B/L System4.896(Max.)W



TFT Pin Description

Pin NO.SymbolDescriptionNote
1AGNDAnalog ground
2AVDDAnalog power
3DVDDDigital power
4GNDDigital ground
5NCNC
6DVDDDigital power
7GNDDigital ground
8NCNCNote 2
9NCNCNote 2
10NCNCNote 2
11NCNCNote 2
12NCNCNote 2
13NCNCNote 2
14NCNCNote 2
15GNDDigital ground
16DVDD_LVDSDigital power
17GNDDigital ground
18PIND3Positive LVDS differential data input
19NIND3Negative LVDS differential data input
20GNDDigital ground
21PINCPositive LVDS differential clock input
22NINCNegative LVDS differential clock input
23GNDDigital ground
24PIND2Positive LVDS differential data input
25NIND2Negative LVDS differential data input
26GNDDigital ground
27PIND1Positive LVDS differential data input
28NIND1Negative LVDS differential data input
29GNDDigital ground
30PIND0Positive LVDS differential data input
56VGHPositive power for TFT
57DVDDDigital power for Gate IC
58VGLNegative power for TFT
59GNDDigital ground for Gate IC



60



BIST

Normal operation/BIST pattern select.

must connect DVDD or GND

BIST="1"(DVDD): BIST mode

BIST="0"(GND): Normal operation. (Default)








All Products



  Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.



Search keyword: tft 10.3, tft 10.3", 10.3 tft lcd, 10.3" tft lcd, 10.3 inch tft lcd, tft lcd 10.3, 10.3 tft display, 10.3" tft display,10.3 inch tft display, tft display 10.3, tft display 10.3"

10.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 010.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 110.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 210.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 310.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 410.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 510.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 610.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 710.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 8



TFT Custom Solutions

10.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 9

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


10.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 10

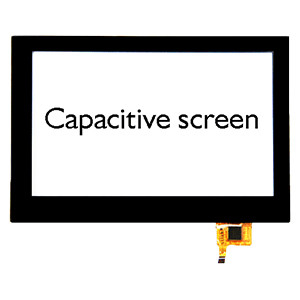

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


10.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 11

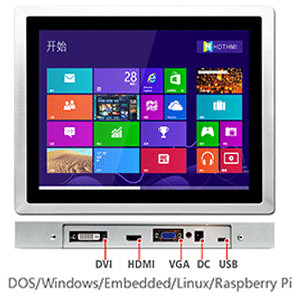

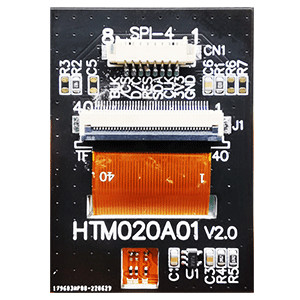

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.




10.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 12

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.



10.3 Inch 1280x480 IPS LVDS Vehicle Grade TFT Module /TFT-H103A3VNGD1E0 13
