您的當前位置:首頁  >  產品中心  >  TFT彩色顯示屏  >  TFT顯示屏標準品 | 全視角 | 高亮度系列  >  8.0 英寸 800x1280 IPS LCD 顯示屏 MIPI NV3051F1 TFT 模塊陽光下可讀 TFT-H080B7HDINV6N30
  • 型號: 8.0 英寸 800x1280 IPS LCD 顯示屏 MIPI NV3051F1 TFT 模塊陽光下可讀 TFT-H080B7HDINV6N30

    類型:TFT豎屏

    顯示像素:800x1280

    外形尺寸 :114.70x184.20x2.65

    VA尺寸:8.0

    AA尺寸 :8.0

    有效尺寸mm:107.64x172.224

    應用:車載,醫療,工控

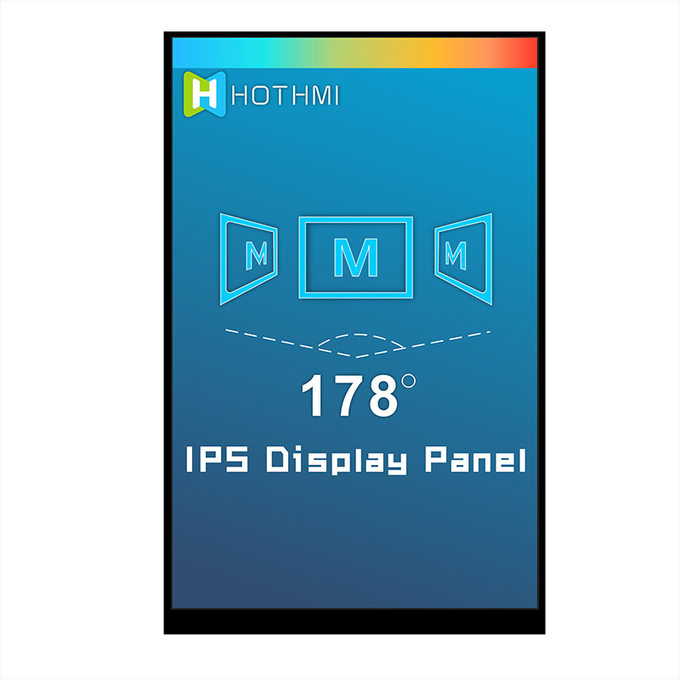

    視角:全視角

    背光/亮度:600cd/m2

    引腳:30pin

    接口方式:MIPI

    特殊說明:抗靜電ESD 8KV

    工作溫度:-20~70℃

    供電電壓:2.8v

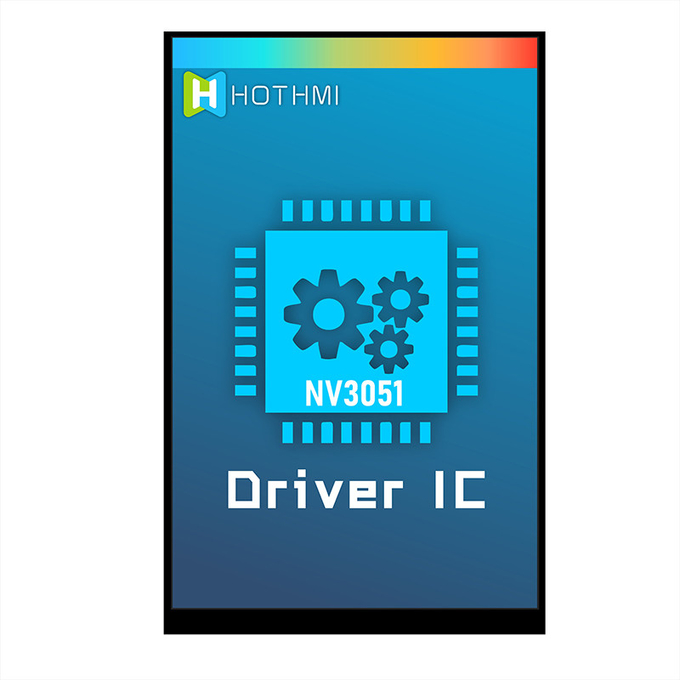

    驅動芯片:NV3051

產品敘述

8.0 英寸 800x1280 IPS LCD 顯示屏 MIPI NV3051F1 TFT 模塊陽光下可讀


TFT-H080B7HDINV6N30 | 8.0" IPS LCD | 800x1280 像素 | 陽光下可讀




隆重推出 TFT-H080B7HDINV6N30,這是一款 8.0 英寸 IPS LCD 顯示屏,具有 800x1280 像素的高分辨率,可提供具有鮮艷色彩和清晰細節的驚人視覺效果。 憑借其先進的技術,該顯示器還設計為陽光下可讀,即使在明亮的戶外環境中也能確保最佳可見度。


無論您是將其用于游戲、流媒體視頻還是瀏覽網頁,此 TFT 模塊都是滿足您顯示需求的完美解決方案。 其 MIPI NV3051F1 技術可確??焖俑咝У臄?shù)據傳輸,而其 IPS 面板可提供寬視角和出色的色彩準確度。


使用 TFT-H080B7HDINV6N30 升級您的設備,體驗全新水平的視覺清晰度和性能。



General information



ItemSpecificationUnit
Outline Dimension114.70x184.20x2.65mmmm
Display area107.64x172.224mmmm
Number of Pixel800(H) x 1280(V)pixels
Pixel pitch-mm
Pixel arrangementRGB Vertical Stripe
Display modeNormally Black
NTSC70(Typ.)%
Surface treatmentAntiglare, Hard-Coating (3H)
Weight-g
Back-lightSingle LED (Side-Light type)

Power

Consumption

Logic System (White Pattern)NV3051W
B/L System-W



TFT Pin Description



Pin NO.

Symbol

Description

1GND

Power supply ground

2D2P

LVDS Positive data signal (+)

3D2N

LVDS Negative data signal (-)

4GND

Power supply ground

5D1P

MIPI Positive data signal (+)

6D1N

MIPI Negative data signal (-)

7GND

Power supply ground

8DCKP

MIPI Positive clock signal (+)

9DCKN

MIPI Negative clock signal (-)

10GND

Power supply ground

11D0P

MIPI Positive data signal (+)

12D0N

MIPI Negative data signal (-)

13GND

Power supply ground

14D3P

LVDS Positive data signal (+)

15D3N

LVDS Negative data signal (-)

16 ~ 17GND

Power supply ground

18RESX

Reset pin

19IOVCC

IO Supply Voltage

20NC

Not connected

21 ~ 22VCI

Power supply

23NC

Not connected

24 ~ 26LEDK

LED cathode

27NC

Not connected

28 ~ 30LEDA

LED anode

All Products



  Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.



Search keyword: tft 8.0, tft 8.0", 8.0 tft lcd, 8.0" tft lcd, 8.0 inch tft lcd, tft lcd 8.0, 8.0 tft display, 8.0" tft display,8.0inch tft display, tft display 8.0, tft display 8.0"

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 08.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 18.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 28.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 38.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 48.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 58.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 68.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 78.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 8

TFT Custom Solutions

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 9

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 10



Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 11

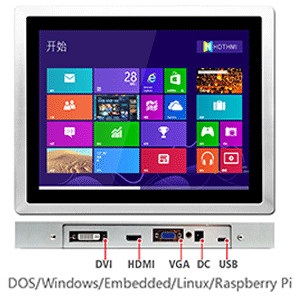

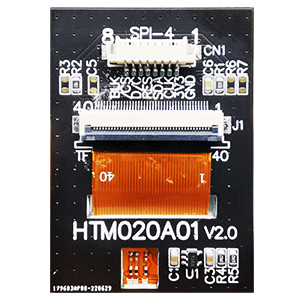

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.




8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 12

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.



8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable 13



TFT-H080B7HDINV6N30.pdf
