您的當前位置:首頁  >  產品中心  >  圖形點陣液晶模組  >  COG液晶顯示模組|帶電路板系列  >  128X64 SPI ST7567 FSTN 圖形 LCD 模塊寬溫儀表/HTM-COG12864T01A-SPI
  • 型號: 128X64 SPI ST7567 FSTN 圖形 LCD 模塊寬溫儀表/HTM-COG12864T01A-SPI

    類型:COB LCD Module

    顯示像素:128x64

    外形尺寸(mm) :58x51.2x6.2

    VA尺寸(mm):54.6x39.2

    AA尺寸(mm) :128x64

    點間距mm:0.38x0.32

    有效尺寸mm:45.2x27

    應用:儀器儀表

    視角:6H

    引腳:12pin

    接口方式:SPI

    特殊說明:抗靜電ESD 8KV

    工作溫度:-30~80℃

    供電電壓:3.3V

    驅動芯片:ST7567

產品敘述

128X64 SPI ST7567 FSTN 圖形 LCD 模塊寬溫儀表

HTM-COG12864T01A-SPI | 單色圖形模塊| 128x64 像素| 透反式LCD | 側白背光| FSTN (+) 正顯 | 現貨


介紹HTM-COG12864T01A-SPI,一款可靠且高質量的單色圖形模塊,非常適合需要寬溫度范圍的儀器儀表應用。其工作溫度范圍為-30℃~80℃,該模塊可在惡劣環(huán)境和極端條件下運行狀況。該模塊采用 128x64 像素透反式 LCD 顯示屏,提供清晰易讀的視覺效果,6 點鐘視角。FSTN (+) 正極顯示和內置負電壓確保出色的對比度和清晰度,使其適用于適用于明亮和昏暗的環(huán)境。HTM-COG12864T01A-SPI 有現貨,可隨時用于您的儀器項目。立即訂購并利用這款可靠的高性能 LCD 模塊來增強您的設計。



Product parameters



ITEMSTANDARD VALUEUNIT
Number of dots128x64dots
Module dimension58x51.2x6.2mmmm
View display area54.6x39.2mmmm
Dot size0.34x0.28mm
Dot pitch0.38x0.32mm
Operating temp-30~80
Storage temp-40~80
Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction6H
Display modeFSTN
Display typeTRANSMISSIVE / NEGATIVE
Driver ICST7567
Backlight

WHITE

Product applicationindustrial control, instrumentation





All Products



Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.

Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

LCD Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation 0


128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation 1

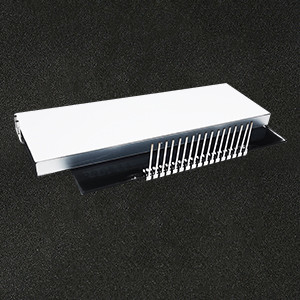

Connector Customization

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation 2

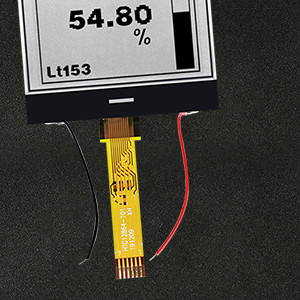

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation 3

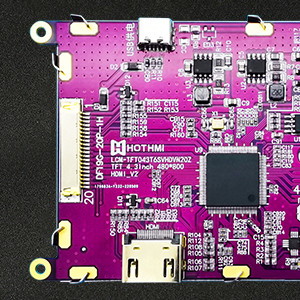

PCB Modifications

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.



128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation 4

HTM-COG12864T01A-SPI.pdf
