類型：TFT豎屏
顯示像素：400x960
外形尺寸 ：101.58×41.40×2.04
VA尺寸：4.0
AA尺寸 ：4.0
有效尺寸mm：94.03x39.18
應用：儀器儀表

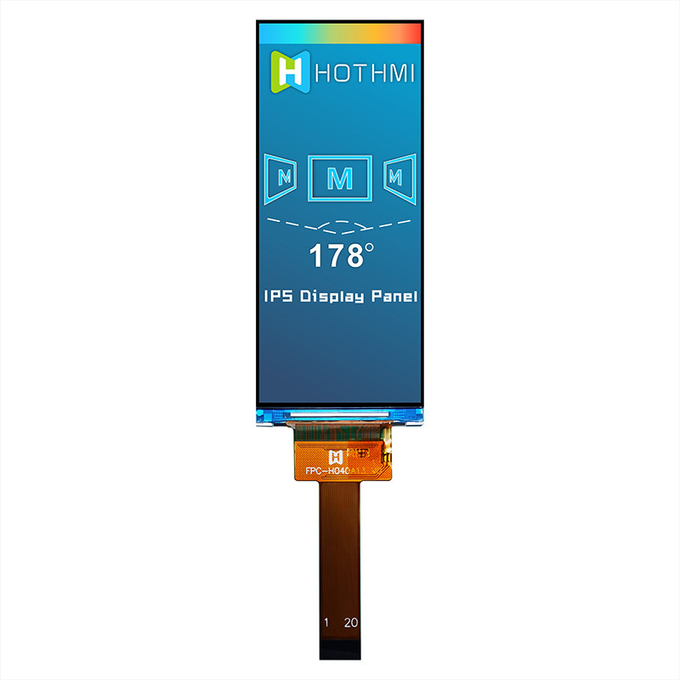

視角：全視角

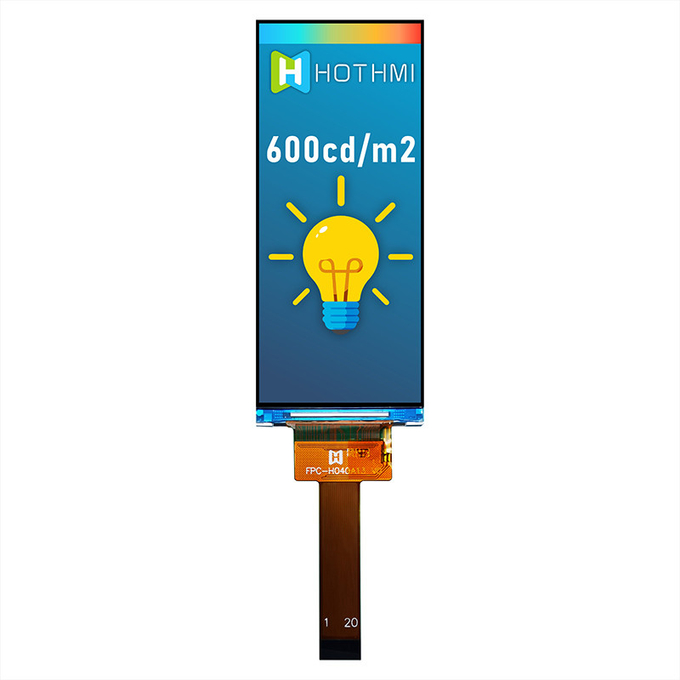

背光/亮度：600cd/m2
引腳：20pin

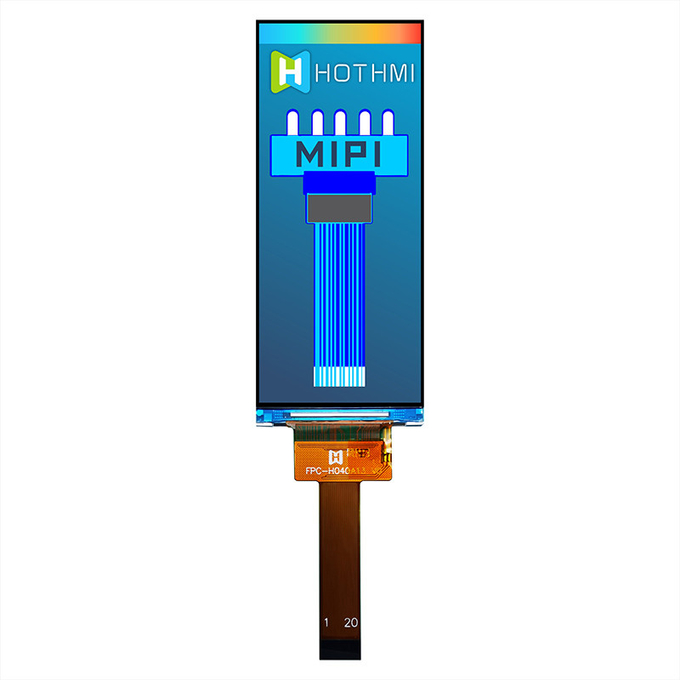

接口方式：MIPI

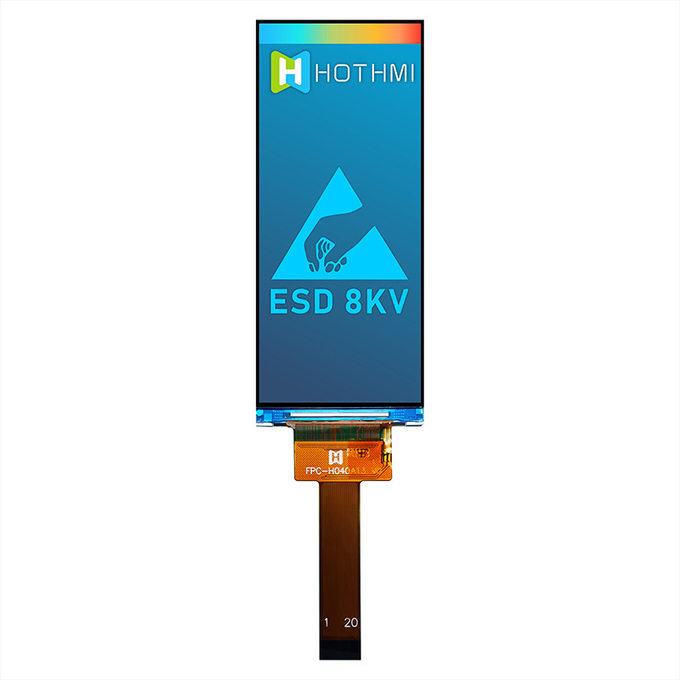

特殊說明：抗靜電ESD 8KV
工作溫度：-30~80℃
供電電壓：3.3V
驅動芯片：ST7701S

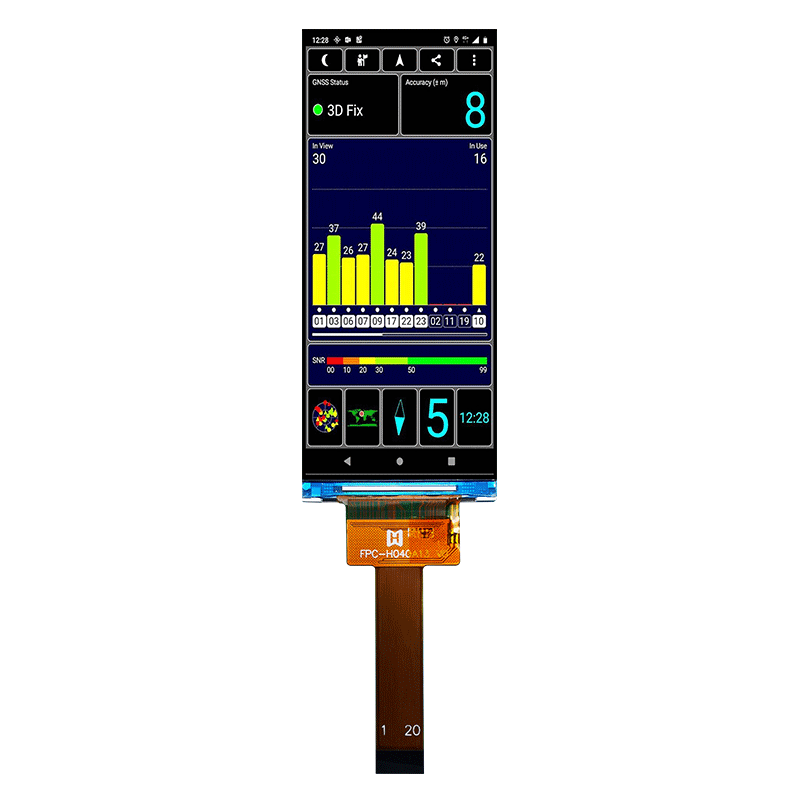

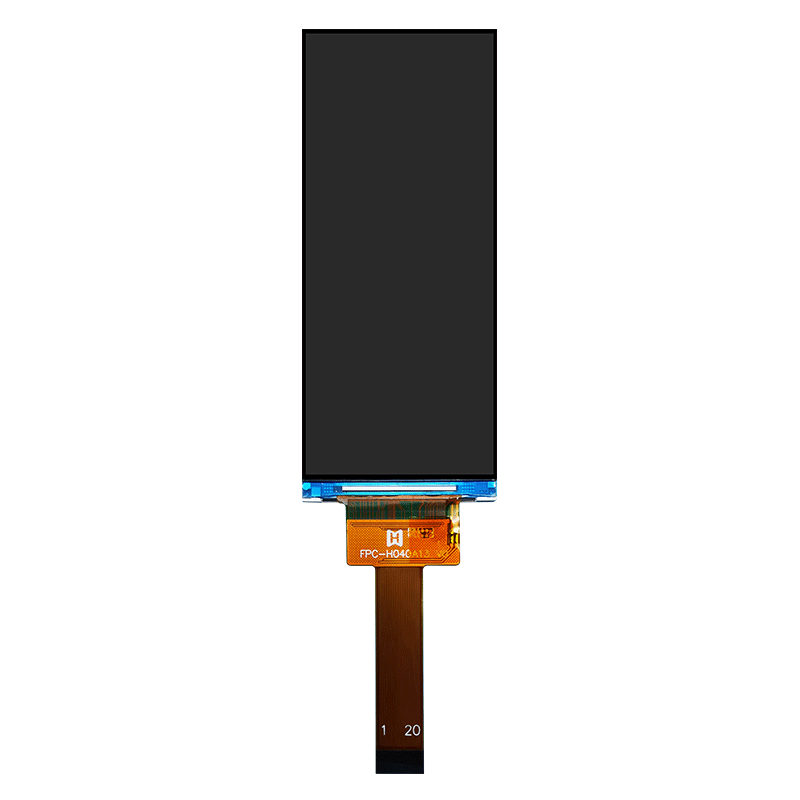

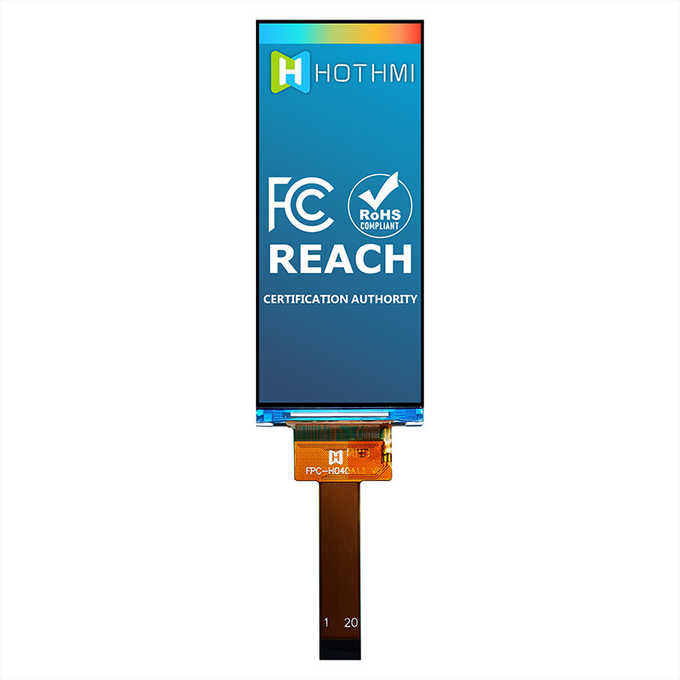

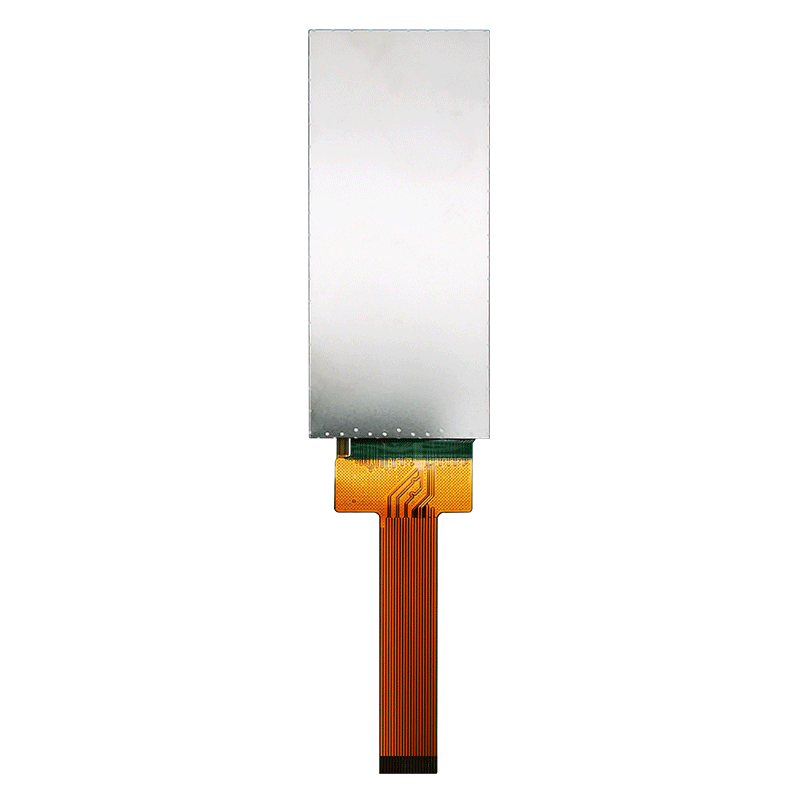

4.0寸長條形TFT 400x960分辨率 IPS全視角 高亮度 寬溫 TFT-H040A13ZDIST6N20
TFT-H040A13ZDIST6N20 | 4.0" IPS液晶顯示屏 | TFT液晶顯示屏制造商 | 400x960分辨率 | -30℃~80℃ | 可用于儀器儀表 | 陽光可讀 | 寬溫度范圍
這款4.0英寸IPS液晶顯示屏是一款專門設計用于戶外儀器儀表的高性能顯示器。它具有高分辨率的400x960像素，保證了清晰、生動的圖像展示效果。此外，該顯示屏還具備出色的陽光可讀性能，讓您在強烈日光下也能輕松查看信息。作為一款TFT液晶顯示屏制造商的產品，我們的TFT-H040A13ZDIST6N20采用高品質材料和先進工藝，確保了其長壽命和高可靠性。寬廣的工作溫度范圍（-30℃~80℃）意味著它可以在惡劣的環境條件下正常工作，從而滿足各種戶外應用場景的需求。如果您需要一款可靠、高效、易于集成的液晶顯示屏來應用于戶外儀器儀表等場景，TFT-H040A13ZDIST6N20將是您的理想選擇。請聯系我們獲取更多信息。
General Feature
Item | Standard Value | Unit | ||

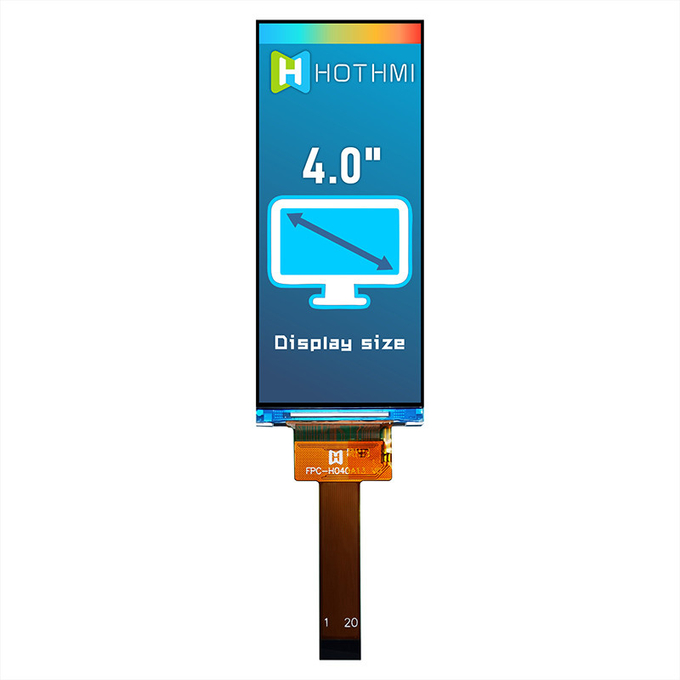

Display Size | 4.0 | Inch | ||
Number of Pixels | 400(H)*3(RGB)* 960(V) | dots | ||
Active Area | 94.03x39.18mm | mm | ||

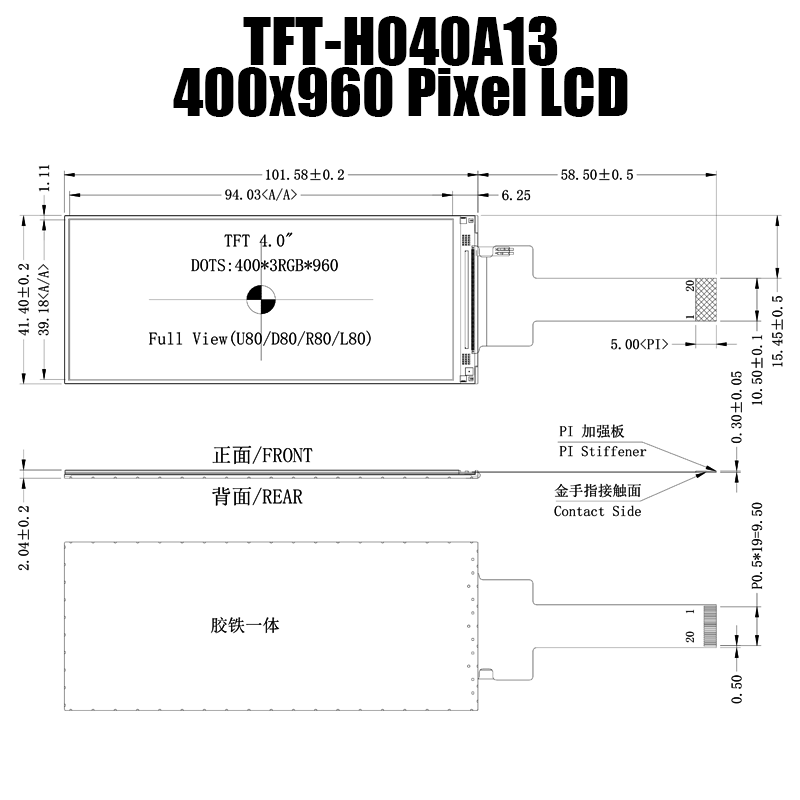

Outline Dimension | 101.58×41.40×2.04 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | MIPI 4L | - | ||

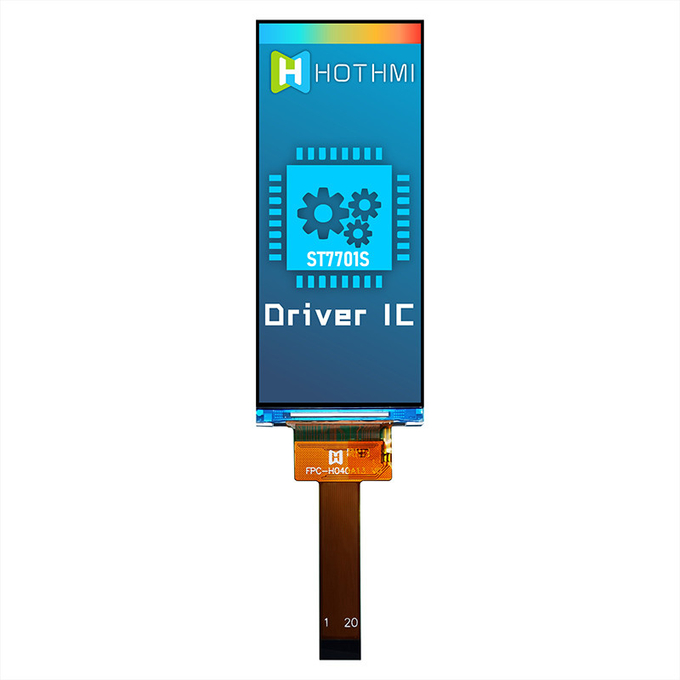

Driver IC | ST7701S | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||

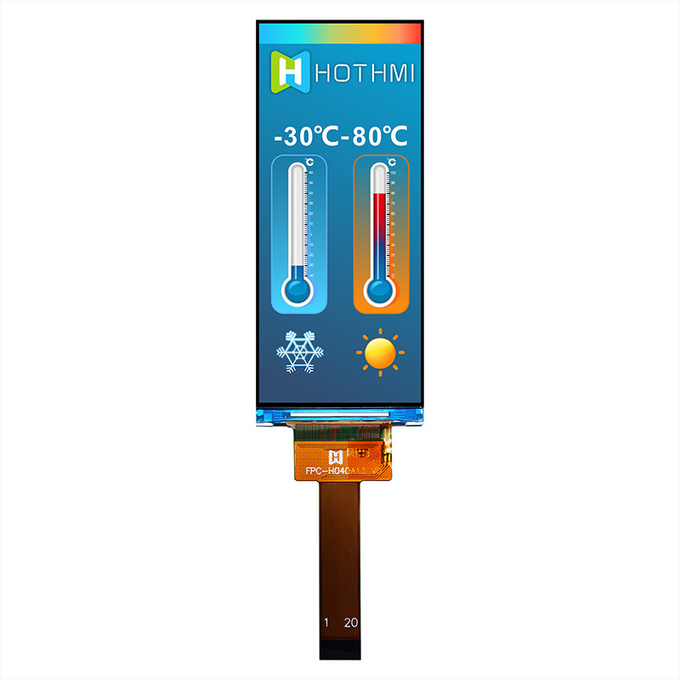

TFT Operation AT | -30 ～ +80 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

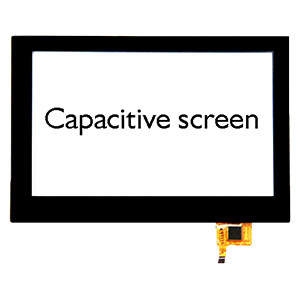

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

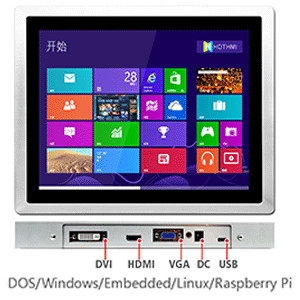

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
